KG
TITANIUM
Il puntale più leggero dall'anello inclinato per montaggi KR Concept. Le misure di questo anello lo rendono ottimo per un ampia tipologia di canne. Da leggere canne da barca a pesanti canne offshore.
T2-TKGTT | TKGTT | TKGSTT | |
Pietra |  |  |  |
Struttura | Dark-Grey | Polished | Polished |
3.5-0.8 | ---- | ---- | |
3.5-1.0 | ---- | ||
3.5-1.2 | ---- | ||
3.5-1.4 | ---- | ||
4-1.1 | ---- | ||
4-1.2 | ---- | ||
4-1.4 | ---- | ||
4-1.6 | ---- | ||
4-1.8 | ---- | ||
4-2.0 | ---- | ||
4.5-1.2 | |||
4.5-1.4 | |||
4.5-1.6 | |||
4.5-1.8 | |||
4.5-2.0 | |||
4.5-2.2 | |||
4.5-2.4 | ---- | ---- | |
5-1.4 | ---- | ||
5-1.6 | ---- | ||
5-1.8 | ---- | ||
5-2.0 | ---- | ||
5-2.2 | ---- | ||
5.5-1.6 | ---- | ||
5.5-1.8 | ---- | ||
5.5-2.0 | ---- | ||
5.5-2.2 | ---- | ||
5.5-2.4 | ---- | ||
6-1.8 | ---- | ||
6-2.0 | ---- | ||
6-2.2 | ---- | ||
6-2.4 | ---- | ||
6-2.6 | ---- | ||
8-1.6 | ---- | ||
8-1.8 | ---- | ||
8-2.0 | ---- | ||
8-2.2 | ---- | ||
8-2.4 | ---- | ||
8-2.6 | ---- | ||
8-2.8 | ---- | ||
8-3.0 | ---- | ||
8-3.2 | ---- |
SIZE CHART
Size | L mm | H mm | O/D mm |
3.5-0.8 | 9.5 | 4.8 | 1.00 |
3.5-1.0 | 10.0 | 4.8 | 1.30 |
3.5-1.2 | 11.0 | 4.8 | 1.50 |
3.5-1.4 | 11.5 | 4.3 | 1.60 |
4-1.1 | 10.5 | 5.5 | 1.40 |
4-1.2 | 10.5 | 5.5 | 1.40 |
4-1.4 | 11.5 | 5.5 | 1.60 |
4-1.6 | 12.5 | 5.5 | 1.84 |
4-1.8 | 12.5 | 5.5 | 2.04 |
4-2.0 | 12.5 | 5.5 | 2.24 |
4.5-1.2 | 10.6 | 6.0 | 1.40 |
4.5-1.4 | 11.6 | 6.0 | 1.60 |
4.5-1.6 | 12.6 | 6.0 | 1.84 |
4.5-1.8 | 12.6 | 6.0 | 2.04 |
4.5-2.0 | 12.6 | 6.0 | 2.24 |
4.5-2.2 | 12.6 | 6.0 | 2.48 |
4.5-2.4 | 12.6 | 6.0 | 2.68 |
5-1.4 | 11.7 | 6.0 | 1.60 |
5-1.6 | 13.0 | 5.6 | 1.84 |
5-1.8 | 13.0 | 5.6 | 2.04 |
5-2.0 | 13.0 | 5.6 | 2.24 |
5-2.2 | 13.0 | 5.6 | 2.48 |
5.5-1.6 | 13.0 | 6.5 | 1.84 |
5.5-1.8 | 13.0 | 6.5 | 2.04 |
5.5-2.0 | 13.0 | 6.5 | 2.24 |
5.5-2.2 | 13.0 | 6.5 | 2.48 |
5.5-2.4 | 13.0 | 6.5 | 2.68 |
6-1.8 | 15.5 | 7.8 | 2.04 |
6-2.0 | 16.5 | 7.8 | 2.24 |
6-2.2 | 16.5 | 7.8 | 2.48 |
6-2.4 | 16.5 | 7.8 | 2.68 |
6-2.6 | 16.5 | 7.8 | 2.91 |
8-1.6 | 17.5 | 11.0 | 1.84 |
8-1.8 | 17.5 | 11.0 | 2.04 |
8-2.0 | 18.5 | 11.0 | 2.24 |
8-2.2 | 18.5 | 11.0 | 2.48 |
8-2.4 | 18.5 | 11.0 | 2.68 |
8-2.6 | 18.5 | 11.0 | 2.91 |
8-2.8 | 18.5 | 11.0 | 3.11 |
8-3.0 | 18.5 | 11.0 | 3.33 |
8-3.2 | 18.5 | 11.0 | 3.53 |
MN
TITANIUM
Puntale per canne fresh e saltwater pesanti.
T2-MNTT | TMNTT | TMNST | |
Pietra | | | |
Struttura | Dark-Grey | Polished | Polished |
5-1.8 | |||
5-2.0 | |||
5-2.2 | ---- | ---- | |
5-2.4 | ---- | ---- | |
5.5-2.0 | ---- | ---- | |
5.5-2.2 | ---- | ---- | |
5.5-2.4 | ---- | ---- | |
6-1.2 | ---- | ---- | |
6-1.4 | ---- | ---- | |
6-1.6 | ---- | ||
6-1.8 | ---- | ||
6-2.0 | |||
6-2.2 | |||
6-2.4 | |||
6-2.6 | |||
6-2.8 | ---- | ||
10-2.0 | ---- | ||
10-2.2 | ---- | ||
10-2.4 | ---- | ||
10-2.6 | |||
10-2.8 | |||
10-3.0 | |||
10-3.2 | |||
10-3.6 | ---- | ||
12-2.8 | |||
12-3.0 | |||
12-3.2 | |||
12-3.6 | |||
12-4.0 | ---- | ---- | |
16-2.8 | ---- | ---- | |
16-3.0 | ---- | ||
16-3.2 | ---- | ---- | |
16-3.6 | ---- | ---- | |
16-4.0 | ---- | ---- |
SIZE CHART
Size | L mm | L1 mm | H mm | O/D mm |
5-1.8 | 22.6 | 5.0 | 6.3 | 2.04 |
5-2.0 | 22.6 | 5.5 | 6.3 | 2.24 |
5-2.2 | 22.6 | 5.5 | 6.3 | 2.48 |
5-2.4 | 22.6 | 5.5 | 6.3 | 2.68 |
5.5-2.0 | 23.6 | 6.0 | 7.0 | 2.24 |
5.5-2.2 | 23.6 | 6.0 | 7.0 | 2.48 |
5.5-2.4 | 23.6 | 6.0 | 7.0 | 2.68 |
6-1.2 | 24.0 | 5.5 | 9.2 | 1.40 |
6-1.4 | 24.0 | 5.5 | 9.2 | 1.60 |
6-1.6 | 24.0 | 5.5 | 9.2 | 1.84 |
6-1.8 | 24.0 | 5.5 | 9.2 | 2.04 |
6-2.0 | 28.0 | 7.0 | 9.2 | 2.24 |
6-2.2 | 28.0 | 7.0 | 9.2 | 2.48 |
6-2.4 | 28.0 | 7.0 | 9.2 | 2.68 |
6-2.6 | 33.0 | 8.5 | 9.2 | 2.91 |
6-2.8 | 33.0 | 8.5 | 9.2 | 3.11 |
10-2.0 | 31.5 | 9.5 | 13.3 | 2.24 |
10-2.2 | 31.5 | 9.5 | 13.3 | 2.48 |
10-2.4 | 31.5 | 9.5 | 13.3 | 2.68 |
10-2.6 | 34.0 | 9.5 | 13.3 | 2.91 |
10-2.8 | 34.0 | 9.5 | 13.3 | 3.11 |
10-3.0 | 34.0 | 9.5 | 13.3 | 3.33 |
10-3.2 | 37.0 | 9.5 | 13.3 | 3.53 |
10-3.6 | 37.0 | 9.5 | 13.3 | 3.97 |
12-2.8 | 34.5 | 9.5 | 14.0 | 3.11 |
12-3.0 | 38.0 | 10.0 | 14.0 | 3.33 |
12-3.2 | 38.0 | 10.0 | 14.0 | 3.53 |
12-3.6 | 38.0 | 10.0 | 14.0 | 3.97 |
12-4.0 | 38.0 | 10.0 | 14.0 | 4.60 |
16-2.8 | 41.2 | 10.3 | 18.5 | 3.10 |
16-3.0 | 41.0 | 11.0 | 17.5 | 3.33 |
16-3.2 | 41.0 | 11.0 | 17.5 | 3.53 |
16-3.6 | 41.0 | 11.0 | 17.5 | 3.97 |
16-4.0 | 41.0 | 11.0 | 17.5 | 4.60 |

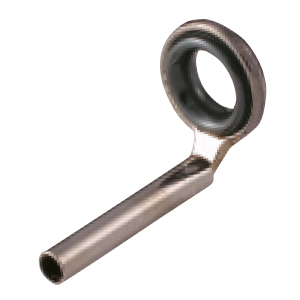

LF
TITANIUM
Il più piccolo tra i puntali in titanio. Indispensabile per bolognesi, canne da tremarella o Ultra Light Rod.
TLFST | |
Pietra | |
Struttura | Polished |
3-0.8 | |
3-0.9 | |
3.5-1.0 | |
3.5-1.2 |
SIZE CHART
Size | L mm | H mm | O/D mm |
3-0.8 | 9.8 | 2.7 | 1.0 |
3-0.9 | 9.8 | 2.7 | 1.10 |
3.5-1.0 | 9.0 | 3.5 | 1.20 |
3.5-1.2 | 9.5 | 3.0 | 1.40 |
