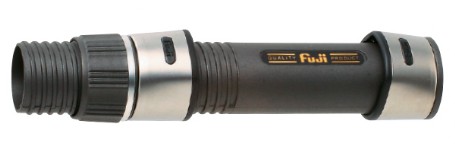

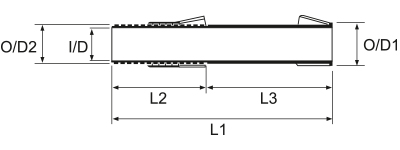

DPS
Pipe Type Reel Seat
DPS SD CC | DPS M CC | DPS M BC | |
Modello | Frosted Silver White | Frosted Silver White | Frosted Dark Grey |
16 | |||
17 | |||
18 | |||
20 | |||
22 | |||
24 | ---- | ||
26 | ---- |
SIZE CHART
Size | O/D 1 mm | O/D 2 mm | I/D mm | L1 mm | L2mm | L3 mm |
16 | 21.7 | 18.3 | 15.5 | 105.0 | 49.1 | 55.9 |
17 | 23.4 | 20.0 | 17.0 | 119.0 | 58.3 | 60.7 |
18 | 24.4 | 21.0 | 18.0 | 124.0 | 64.0 | 60.0 |
20 | 26.4 | 23.0 | 20.0 | 129.0 | 63.4 | 65.6 |
22 | 28.4 | 25.0 | 22.0 | 129.0 | 61.2 | 67.8 |
24 | 30.8 | 27.0 | 24.0 | 137.0 | 67.2 | 69.8 |
26 | 32.8 | 29.0 | 26.0 | 137.0 | 67.2 | 69.8 |

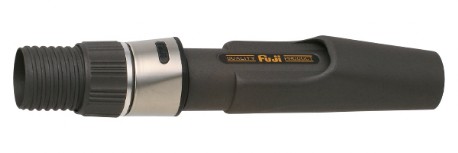

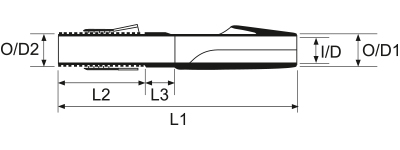

DNPS
Pipe Type Reel Seat
SIZE CHART
Size | O/D 1 mm | O/D 2 mm | I/D mm | L1 mm | L2mm | L3 mm |
16 | 17.0 | 18.4 | 15.0 | 132 | 43.5 | 12.5 |
18 | 20.0 | 21.0 | 18.0 | 151 | 51.5 | 15.5 |
| 20 | 22.0 | 23.0 | 20.0 | 161 | 59.5 | 17.5 |
22 | 24.0 | 25.0 | 22.0 | 161 | 59.5 | 17.5 |
24 | 26.0 | 27.0 | 24.0 | 167 | 63.0 | 20.0 |
DNPS M CC | DNPS SD CC | DNPS M BC | DDNPSSD GMP | |
Modello | Frosted Silver-White | Frosted Silver-White | Frosted Dark-Gray | Shiny-Gray |
16 | ---- | ---- | ||
18 | ||||
20 | ||||
22 | ||||
24 |

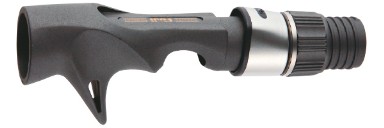

ACS
Pipe Type Reel Seat
| Size | ACS M CC |
16-10.0 | I/D 2 mm 10.0 |
16-11.0 | I/D 2 mm 11.0 |
16-12.0 | I/D 2 mm 12.0 |
16-13.0 | I/D 2 mm 13.0 |
16-14.0 | I/D 2 mm 14.0 |
16-15.0 | I/D 2 mm 15.0 |
17-16.0 | I/D 2 mm 16.0 |
17-17.0 | I/D 2 mm 17.0 |

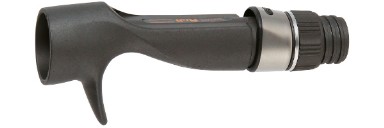

ECS
Pipe Type Reel Seat
Size | ECS SD CC |
16-9.5 | I/D 2 mm 9.5 |
16-10.0 | I/D 2 mm 10.0 |
16-11.0 | I/D 2 mm 11.0 |
16-12.0 | I/D 2 mm 12.0 |
16-13.0 | I/D 2 mm 13.0 |
16-14.0 | I/D 2 mm 14.0 |
16-15.0 | I/D 2 mm 15.0 |

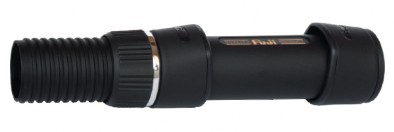

FK7-DPS
Soft Touch Pipe Type Reel Seat

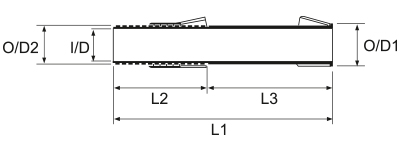

SIZE CHART
Size | O/D 1 mm | O/D 2 mm | I/D mm | L1 mm | L2mm | L3 mm |
18 | 24.4 | 21.0 | 18.0 | 124.0 | 64.0 | 60.0 |
FK7DPS-SD | |
18 |

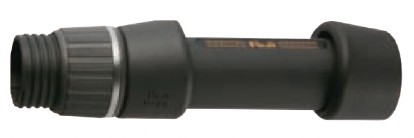

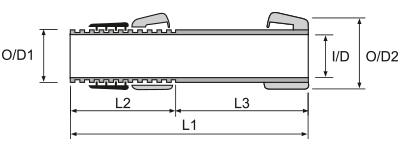

DPS-H
Pipe Type Reel Seat
SIZE CHART
Size | O/D1 mm | O/D2 mm | I/D mm | L1 mm | L2 mm | L3 mm |
22-20 | 25.0 | 31.0 | 20.0 | 129 | 61.2 | 65.6 |
24-22 | 27.0 | 33.5 | 22.0 | 143 | 61.2 | 71.2 |
26-24 | 29.0 | 35.5 | 24.0 | 143 | 61.2 | 71.2 |
DPS-H CC | |
Size | Frosted Silver-White |
22-20 | |
24-22 | |
26-24 |
FPS
Pipe Type Reel Seat
FPS W per canne da mosca.
FPS LDB dotato di innesto avvitabile per canne con manico staccabile.

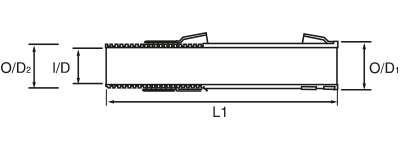

SIZE CHART
Size | O/D 1 mm | O/D 2 mm | I/D mm | L1 mm |
16 | 21.7 | 18.3 | 15.5 | 105.0 |
24 | 23.4 | 20.0 | 17.0 | 119.0 |
35 | 42.3 | 39.0 | 35.0 | 142.0 |
FPS CC | FPS W | DFPS-LBD | |
Size | Frosted Silver-White | Frosted Silver-White | Frosted Silver-White |
16 | ---- | ---- | |
24 | ---- | ---- | |
35 | ---- | ---- |

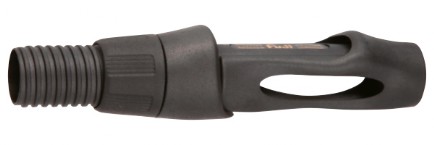

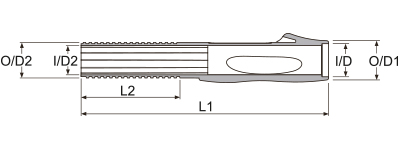

TVS
Pipe Type Reel Seat
TVSTS | TVSTK | TVSTJS | TVSTJK | |
16-15.0 | ||||
17-17.0 |
SIZE CHART
Size | O/D 1 mm | O/D 2 mm | I/D mm | I/D2 mm | L1 mm | L2mm |
16-15.0 | 20.0 | 18.30 | 17.0 | 15.0 | 127.0 | 50.7 |
17-17-0 | 24.0 | 19.95 | 19.0 | 17.0 | 145.5 | 66.5 |

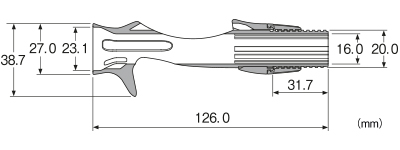

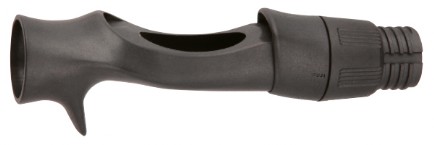

PTS
Pipe Type Reel Seat
PTSMPS | PTSMPK | |
17-16.0 |

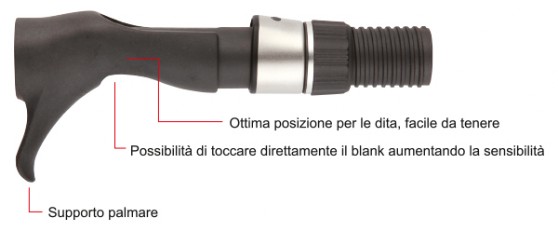

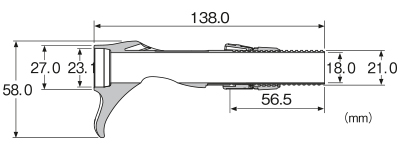

PLS
Pipe Type Reel Seat
PLS SD CC | |
18-18.0 |

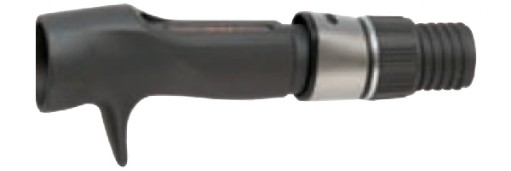

TCS
Pipe Type Reel Seat
Portamulinello da casting dai molteplici utilizzi.
TCS SD CC | |
18 |
SIZE CHART
Size | O/D mm | I/D mm | L1 mm | L2 mm | H mm |
18 | 18.3 | 15.0 | 1114.0 | 40.0 | 46.2 |

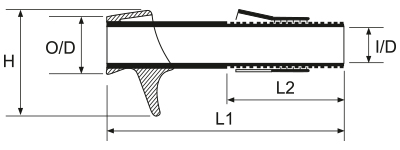

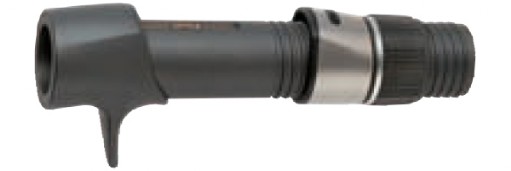

T-DPS
Pipe Type Reel Seat
Portamulinello da casting large dai molteplici utilizzi.
TDPS SD CC | |
| 20 | |
22 |
SIZE CHART
Size | O/D mm | I/D mm | L1 mm | L2 mm | H mm |
20 | 28.9 | 20.0 | 129.0 | 63.4 | 52.0 |
22 | 30.9 | 22.0 | 129.0 | 61.2 | 54.0 |

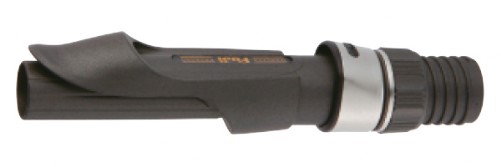

VSS
Pipe Type Reel Seat
Portamulinello dal design ergonomico, studiato per aumentarne la praticità in pesca. Ideale per canne da bass, trota, egi e saltwater light.
VSS SD CC | VSS SD GM | |
Size | Frosted Silver-White | Shiny-Gray |
| 16 | ||
16-15.0 | ---- | |
17 |
SIZE CHART
Size | O/D1 mm | O/D2 mm | O/D3 mm | I/D mm | L1 mm | L2 mm |
16 | 18.3 | 14.8 | 23.0 | 13.0 | 120 | 38.5 |
16.5 | 18.3 | 16.8 | 23.0 | 15.0 | 120 | 38.5 |
17 | 20.0 | 18.8 | 27.0 | 17.0 | 130 | 45.0 |

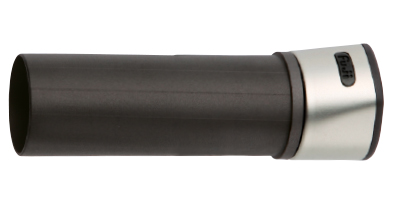

KDPS-ASH
Pipe Type Reel Seat
SIZE CHART
Size | L1 mm | L2 mm | L3 mm | L4 mm | I/D mm | O/D1 mm | O/D2 mm | O/D3 mm | A mm | B mm | W mm |
16 | 61.5 | 13.5 | 12.0 | 45.5 | 18.6 | 21.9 | 22.1 | 20.5 | 18.6 | 17.6 | 1.4 |
17 | 76.5 | 18.0 | 16.0 | 55.5 | 20.3 | 23.6 | 23.8 | 22.2 | 20.3 | 19.2 | 2.0 |
KDPS CC/ASH | KDPS GM/ASH | |
Size | Frosted Silver-White | Shiny-Gray |
| 16 | ||
17 |
SKELETON TYPE REEL SEAT
KSKSS | |
| 16 | |
17 |
SIZE CHART
Size | O/D1 mm | I/D mm | L1 mm | L2 mm | L3 mm | WT. g |
16 | 21.0 | 19.0 | 25.0 | 29.5 | 51.7 | 8.0 |
17 | 22.7 | 20.7 | 25.0 | 29.5 | 51.7 | 8.6 |

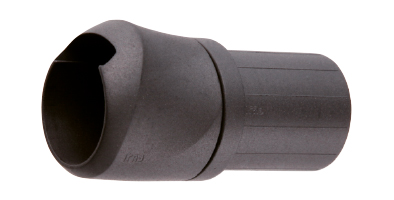

KSKSS-ASH
Pipe Type Reel Seat
Innovativo portamulinello ultra-light con alloggiamento per grip, da utilizzare in combinazione con SKSS o SKTS. Per canne da spinning e casting, ideale anche per l'utilizzo dalla barca con mulinelli piccoli o medio piccoli.
SKSS | |
| 16 | |
17 |
SIZE CHART
Size | O/D1 mm | I/D mm | L1 mm | L2 mm | WT. g |
16 | 24.8 | 19.0 | 18.0 | 40.3 | 7.9 |
17 | 26.7 | 20.7 | 18.0 | 40.3 | 8.6 |

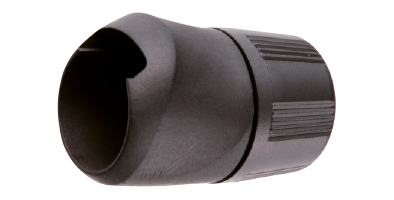

SKSS-ASH
Pipe Type Reel Seat
Innovativo portamulinello ultra-light da utilizzare in combinazione con SKSS o SKTS. Per canne da spinning e casting, ideale anche per l'utilizzo dalla barca con mulinelli piccoli o medio piccoli.
SKSPS N/B | |
| 16 | |
17 |
SIZE CHART
Size | O/D1 mm | I/D mm | L1 mm |
16 | 18.3 | 15.5 | 46.5 |
17 | 20.0 | 17.0 | 56.0 |
SIZE CHART
Size | O/D1 mm | I/D mm | L1 mm | L2 mm | WT. g |
16 | 18.3 | 18.3 | 15.5 | 27.7 | 6.6 |
17 | 20.0 | 20.0 | 17.0 | 27.7 | 7.5 |
SKSS/B | |
| 16 | |
17 |
SKSPS-N/B
Pipe Type Reel Seat

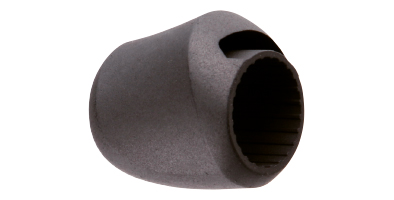

SKSS
Pipe Type Reel Seat
Innovativo portamulinello skeletono ultra-light. Per canne da spinning e da barca.
SKTS/B | |
| 16 | |
17 |
SIZE CHART
Size | O/D1 mm | O/D2 mm | I/D mm | L1 mm | * mm | WT. g |
16 | 23.0 | 18.3 | 15.5 | 30.0 | 20.0 | 9.2 |
17 | 23.0 | 20.0 | 17.0 | 30.0 | 20.0 | 9.9 |
SKTS
Pipe Type Reel Seat
Innovativo portamulinello skeletono ultra-light. Per canne da casting e da barca.
